前言：本项目的目的是为了在 esp32 平台上移植开源 OLED 项目 oled-ui-astra，详见GitHub - AstraThreshold/oled-ui-astra: A smooth, easy-to-deploy, and easy-to-extend OLED UI framework, based on C++.，并添加旋转编码器 KY-040 实现 UI 界面的简单切换。
尽管笔者已经在本地环境测试没有问题，但是不能保证大家使用后也能正常工作，这里笔者尽量把移植 oled-ui-astra 项目的过程讲清楚，同时把已经测试过没有问题的整体工程放到这里GitHub - Thee24LYJ/oled-ui-astra at esp32，仅供参考。下面正式开始。

1.硬件环境

1.1 硬件设备

esp32 DevKit、7 针 SPI OLED 和旋转编码器 KY-040

1.2 硬件连线

ESP32 采用硬件 SPI 与 OLED 进行通信

OLED ESP32
SCLK (CLK)/D0 GPIO 18
MOSI (DIN)/D1 GPIO 23
CS (片选) GPIO 5 (可自定义)
DC (数据/命令) GPIO 16 (可自定义)
RES (复位) GPIO 17 (可自定义，可选接)
VCC 3.3V
GND GND
KY-040 ESP32
CLK GPIO 4 (可自定义)
DT GPIO 2 (可自定义)
VCC/+ 3.3V
GND GND

2.部署 oled-ui-astra 项目

官方部署教程：部署教程 ‐ Deployment Tutorial · AstraThreshold/oled-ui-astra Wiki · GitHub

由于笔者使用的开发环境是 VScode+PlatformIO，因此与官方部署教程存在差异

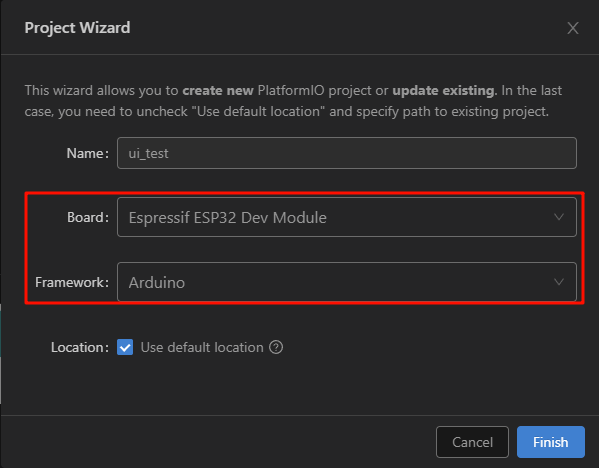

2.1 创建 PlatformIO 工程

这里开发板选择 Espressif ESP32 Dev Module，框架选择 Arduino，工程位置可默认也可自定义

2.2 添加依赖库

在项目工程中的platformio.ini最后添加如下内容，其中olikraus/U8g2@^2.35.4是用于驱动OLED显示屏的u8g2库，madhephaestus/ESP32Encoder@^0.11.7是用于驱动KY-040的ESP32Encoder库

1
2
3
lib_deps =
    olikraus/U8g2@^2.35.4
    madhephaestus/ESP32Encoder@^0.11.7

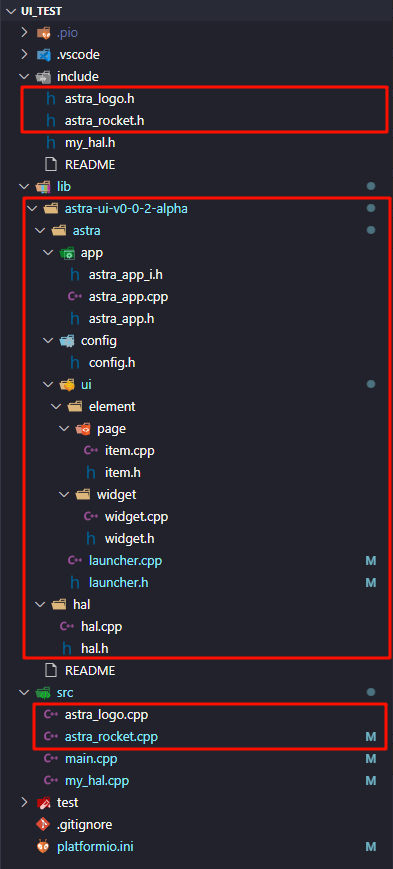

2.3 添加 oled-ui-astra 源码到工程中

  • 然后，修改一些头文件和源文件代码
    • 修改include\astra_logo.h中头文件包含#include "../hal/hal.h"为#include "hal/hal.h"
    • 修改include\astra_rocket.h中头文件包含#include "../astra/ui/launcher.h"为#include "astra/ui/launcher.h"，修改#include "../hal/hal_dreamCore/hal_dreamCore.h"为#include "my_hal.h"
    • 修改lib\astra-ui-v0-0-2-alpha\astra\config\config.h中头文件包含#include "../../hal/hal_dreamCore/components/oled/graph_lib/u8g2/u8g2.h"为#include <U8g2lib.h>
    • 修改lib\astra-ui-v0-0-2-alpha\astra\config\config.h中logoTitleFont、logoCopyRightFont、mainFont的字体为u8g2_font_ncenB08_tr(或者其他能显示的字体)，如下图所示
    • 修改src\astra_rocket.cpp中astraCoreInit()函数的HAL::inject (new HALDreamCore);为HAL::inject(new MyHAL);
  • 最后，在include文件夹中新建子类头文件my_hal.h，在src文件夹中新建子类源文件my_hal.cpp，定义继承自HAL类的子类为MyHAL，具体实现代码如下
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
// MyHAL.h
#ifndef MYHAL_H_
#define MYHAL_H_

#include "hal/hal.h"

class MyHAL : public HAL
{
public:
    MyHAL() = default;
    void init() override
    {
        _u8g2_init();
    }

private:
    void _u8g2_init();

protected:
    u8g2_t canvasBuffer{};

public:
    void _screenOn() override;
    void _screenOff() override;

    void *_getCanvasBuffer() override;
    uint8_t _getBufferTileHeight() override;
    uint8_t _getBufferTileWidth() override;
    void _canvasUpdate() override;
    void _canvasClear() override;
    void _setFont(const uint8_t *_font) override;
    uint8_t _getFontWidth(std::string &_text) override;
    uint8_t _getFontHeight() override;
    void _setDrawType(uint8_t _type) override;
    void _drawPixel(float _x, float _y) override;
    void _drawEnglish(float _x, float _y, const std::string &_text) override;
    void _drawChinese(float _x, float _y, const std::string &_text) override;
    void _drawVDottedLine(float _x, float _y, float _h) override;
    void _drawHDottedLine(float _x, float _y, float _l) override;
    void _drawVLine(float _x, float _y, float _h) override;
    void _drawHLine(float _x, float _y, float _l) override;
    void _drawBMP(float _x, float _y, float _w, float _h, const uint8_t *_bitMap) override;
    void _drawBox(float _x, float _y, float _w, float _h) override;
    void _drawRBox(float _x, float _y, float _w, float _h, float _r) override;
    void _drawFrame(float _x, float _y, float _w, float _h) override;
    void _drawRFrame(float _x, float _y, float _w, float _h, float _r) override;

public:
    void _delay(unsigned long _mill) override;
    // unsigned long _millis() override;
    // unsigned long _getTick() override;
    unsigned long _getRandomSeed() override;

    // void _updateConfig() override;
};

#endif
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
// my_hal.cpp
#include <U8g2lib.h>
#include "my_hal.h"

void MyHAL::_delay(unsigned long _mill)
{
    delayMicroseconds(_mill * 1000);
}

void MyHAL::_u8g2_init()
{
    // esp32 硬件SPI
    u8g2_Setup_ssd1306_128x64_noname_f(&canvasBuffer, U8G2_R0, u8x8_byte_arduino_hw_spi, u8x8_gpio_and_delay_arduino);
    u8x8_SetPin_4Wire_HW_SPI((u8x8_t *)&canvasBuffer, /* cs=*/5, /* dc=*/16, /* reset=*/17);
    u8g2_InitDisplay(&canvasBuffer);
    u8g2_ClearBuffer(&canvasBuffer);
    u8g2_SetPowerSave(&canvasBuffer, 0);
    u8g2_SetFontMode(&canvasBuffer, 1);      /*字体模式选择*/
    u8g2_SetFontDirection(&canvasBuffer, 0); /*字体方向选择*/
    u8g2_SetFont(&canvasBuffer, u8g2_font_wqy12_t_gb2312);
}

void MyHAL::_screenOn()
{
    u8g2_SetPowerSave(&canvasBuffer, 0);
}
void MyHAL::_screenOff()
{
    u8g2_SetPowerSave(&canvasBuffer, 1);
}
void *MyHAL::_getCanvasBuffer()
{
    return u8g2_GetBufferPtr(&canvasBuffer);
}
uint8_t MyHAL::_getBufferTileHeight()
{
    return u8g2_GetBufferTileHeight(&canvasBuffer);
}
uint8_t MyHAL::_getBufferTileWidth()
{
    return u8g2_GetBufferTileWidth(&canvasBuffer);
}

void MyHAL::_canvasClear()
{
    u8g2_ClearBuffer(&canvasBuffer);
}

void MyHAL::_canvasUpdate()
{
    u8g2_SendBuffer(&canvasBuffer);
}
void MyHAL::_setFont(const uint8_t *_font)
{
    u8g2_SetFontMode(&canvasBuffer, 1);      /*字体模式选择*/
    u8g2_SetFontDirection(&canvasBuffer, 0); /*字体方向选择*/
    u8g2_SetFont(&canvasBuffer, _font);
}

uint8_t MyHAL::_getFontWidth(std::string &_text)
{
    return u8g2_GetUTF8Width(&canvasBuffer, _text.c_str());
}
uint8_t MyHAL::_getFontHeight()
{
    return u8g2_GetMaxCharHeight(&canvasBuffer);
}

void MyHAL::_setDrawType(uint8_t _type)
{
    u8g2_SetDrawColor(&canvasBuffer, _type);
}

void MyHAL::_drawPixel(float _x, float _y)
{
    u8g2_DrawPixel(&canvasBuffer, (int16_t)std::round(_x), (int16_t)std::round(_y));
}

void MyHAL::_drawEnglish(float _x, float _y, const std::string &_text)
{
    u8g2_DrawUTF8(&canvasBuffer, (int16_t)std::round(_x), (int16_t)std::round(_y), _text.c_str());
    // u8g2_DrawStr(&canvasBuffer, (int16_t)std::round(_x), (int16_t)std::round(_y), _text.c_str());
}

void MyHAL::_drawChinese(float _x, float _y, const std::string &_text)
{
    u8g2_DrawUTF8(&canvasBuffer, (int16_t)std::round(_x), (int16_t)std::round(_y), _text.c_str());
}

void MyHAL::_drawBMP(float _x, float _y, float _w, float _h, const uint8_t *_bitMap)
{
    u8g2_DrawXBMP(&canvasBuffer, (int16_t)std::round(_x), (int16_t)std::round(_y), (int16_t)std::round(_w), (int16_t)std::round(_h), _bitMap);
}

void MyHAL::_drawBox(float _x, float _y, float _w, float _h)
{
    u8g2_DrawBox(&canvasBuffer, (int16_t)std::round(_x), (int16_t)std::round(_y), (uint8_t)std::round(_w), (uint8_t)std::round(_h));
}

void MyHAL::_drawRBox(float _x, float _y, float _w, float _h, float _r)
{
    u8g2_DrawRBox(&canvasBuffer, (int16_t)std::round(_x), (int16_t)std::round(_y), (uint8_t)std::round(_w), (uint8_t)std::round(_h), (uint8_t)std::round(_r));
}

void MyHAL::_drawFrame(float _x, float _y, float _w, float _h)
{
    u8g2_DrawFrame(&canvasBuffer, (int16_t)std::round(_x), (int16_t)std::round(_y), (uint8_t)std::round(_w), (uint8_t)std::round(_h));
}

void MyHAL::_drawRFrame(float _x, float _y, float _w, float _h, float _r)
{
    u8g2_DrawRFrame(&canvasBuffer, (int16_t)std::round(_x), (int16_t)std::round(_y), (uint8_t)std::round(_w), (uint8_t)std::round(_h), (uint8_t)std::round(_r));
}

void MyHAL::_drawHLine(float _x, float _y, float _l)
{
    u8g2_DrawHLine(&canvasBuffer, (int16_t)std::round(_x), (int16_t)std::round(_y), (uint8_t)std::round(_l));
}

void MyHAL::_drawVLine(float _x, float _y, float _h)
{
    u8g2_DrawVLine(&canvasBuffer, (int16_t)std::round(_x), (int16_t)std::round(_y), (uint8_t)std::round(_h));
}

void MyHAL::_drawVDottedLine(float _x, float _y, float _h)
{
    for (unsigned char i = 0; i < (unsigned char)std::round(_h); i++)
    {
        if (i % 8 == 0 | (i - 1) % 8 == 0 | (i - 2) % 8 == 0)
            continue;
        u8g2_DrawPixel(&canvasBuffer, (int16_t)std::round(_x), (int16_t)std::round(_y) + i);
    }
}

void MyHAL::_drawHDottedLine(float _x, float _y, float _l)
{
    for (unsigned char i = 0; i < _l; i++)
    {
        if (i % 8 == 0 | (i - 1) % 8 == 0 | (i - 2) % 8 == 0)
            continue;
        u8g2_DrawPixel(&canvasBuffer, (int16_t)std::round(_x) + i, (int16_t)std::round(_y));
    }
}

unsigned long MyHAL::_getRandomSeed()
{
    return random(0, 100);
}

2.4 完善 main 函数

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
// main.cpp
#include <Arduino.h>
#include "my_hal.h"
#include "astra_rocket.h"
#include "astra_logo.h"

void setup()
{
 // put your setup code here, to run once:
  astraCoreInit();
}

void loop()
{
  // put your main code here, to run repeatedly:
  astraLauncher->update();
}

2.5 编译下载

通过 USB 线将 ESP32 连接到电脑上，点击 upload 编译固件上传到 ESP32 中，按下复位键重启开发板，一切顺利的话，就能够实现【astra UI】v0.0.2-alpha 版本特性演示 - 超容易移植的 一行代码就可以创建的丝滑 OLED UI_哔哩哔哩_bilibili中的丝滑效果

若是下载时遇到无法识别芯片等问题，可能需要手动进入下载模式：

  • 拉低 BOOT 引脚（按住开发板的 BOOT 按键）
  • 短按 EN/RST 引脚（复位开发板）
  • 松开 BOOT 键后立即开始烧录

3.添加旋转编码器到工程中

3.1 添加 OLED 对旋转编码器的响应函数

  • 在lib\astra-ui-v0-0-2-alpha\astra\ui\launcher.h的Launcher类中添加公有成员函数void update(int cnt, bool is_pressed);
  • 在lib\astra-ui-v0-0-2-alpha\astra\ui\launcher.cpp中添加该函数的视线，具体代码如下(注意：这里只是简单实现了旋转编码器旋转切换 UI 界面和按下按键进入下一级界面(如果有的话))
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
void Launcher::update(int cnt, bool is_pressed)
  {
    HAL::canvasClear();
    currentPage->render(camera->getPosition());
    selector->render(camera->getPosition());
    camera->update(currentPage, selector);

    uint8_t item_num = currentPage->getItemNum();
    uint8_t item_index = currentPage->selectIndex;
    if (cnt % item_num < 0)
      item_index = item_num - 1;
    else if (cnt % item_num > item_num - 1)
      item_index = 0;
    else
      item_index = cnt % item_num;
    if (item_index != currentPage->selectIndex)
    {
      selector->go(item_index);
    }
    if (is_pressed)
      open();
    // if (time == 2900)
    //   close();

    HAL::canvasUpdate();
  }
}

3.2 完善 main 函数

直接在main.cpp中添加KY-040的初始化代码及旋转和按下按键的简单处理操作，具体代码如下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
// main.cpp
#include <Arduino.h>
#include <ESP32Encoder.h>
#include "my_hal.h"
#include "astra_rocket.h"
#include "astra_logo.h"

ESP32Encoder encoder; // 创建编码器对象

void setup()
{

  Serial.begin(115200);
  // put your setup code here, to run once:
  // 初始化编码器（CLK=GPIO4, DT=GPIO2）
  encoder.attachHalfQuad(4, 2);
  // 配置硬件去抖动（必须设置）
  encoder.setFilter(1023); // 启用最大滤波强度
  encoder.clearCount();    // 计数器归零
  // 配置按键引脚（SW=GPIO15）
  pinMode(15, INPUT_PULLUP);

  astraCoreInit();
}

void loop()
{
  // put your main code here, to run repeatedly:
  static int lastCount = 0;
  int currentCount = encoder.getCount();
  bool isPressed = false;

  // 检测按钮按下（低电平触发）
  if (digitalRead(15) == LOW)
  {
    isPressed = true;
    // encoder.clearCount(); // 清除计数器
    Serial.println("Button Pressed!");
    delay(200); // 软件去抖动
  }

  astraLauncher->update(currentCount / 5, isPressed);
}

3.3 编译上传

点击upload将修改后的代码编译上传到ESP32中后复位，一切顺利的话应该就能通过旋转编码器切换OLED显示屏上的图标并进入下一级界面(如果有的话)
